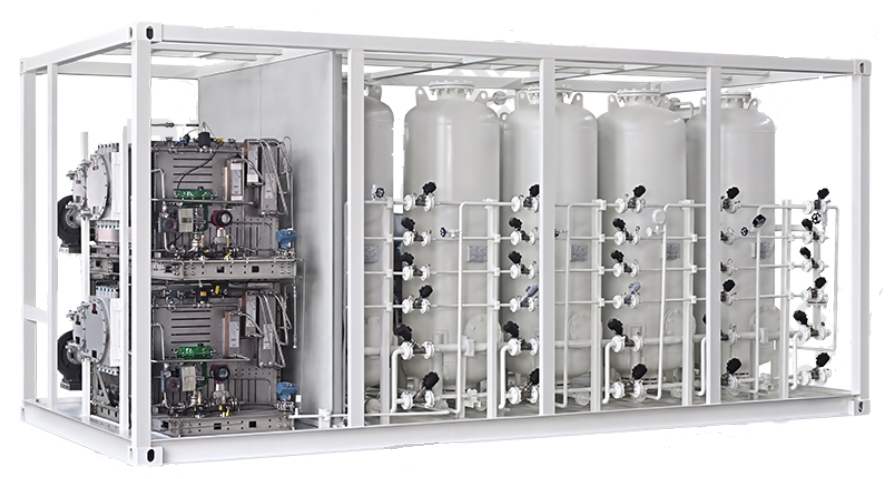

Methanol reforming to hydrogen technology: using methanol and waters as raw materials to produce 75% hydrogen-rich gas through reforming with catalytic and produces high purity(99.995%) hydrogen through PSA purification technology.
Features:
Very low hydrogen production cost ＜18 RMB/kg(Methanol price is calculated based on 2300RMB/ton)
Low energy consumption
Compact size-skid only needs 20㎡ per 100 Nm³/h
Safe and reliable-hydrogen production from methanol is safer than alternatives.
Technical indicators:
Power consumption: 0.1KWh/Nm³ H2
Hydrogen production: 100 Nm³/h
Hydrogen Purity: ≥99.995%
Hydrogen outlet Pressure: 1.3Mpa（G）
Methanol consumption: 0.75kg/Nm³ H2
Noise: ≤65db
System life: ≥5 years
